Welcome to Taishan Fiberglass!

APPLIACATION & PROCESS
  • Processes
  • Application

Home > APPLIACATION & PROCESS > Processes > Manufacturing Process for Wind Energy

Processes

Manufacturing Process for Wind Energy


Hand Lay-up,Prepreg(Pre-forming),Vacuum infusion(Vacuum Bagging)

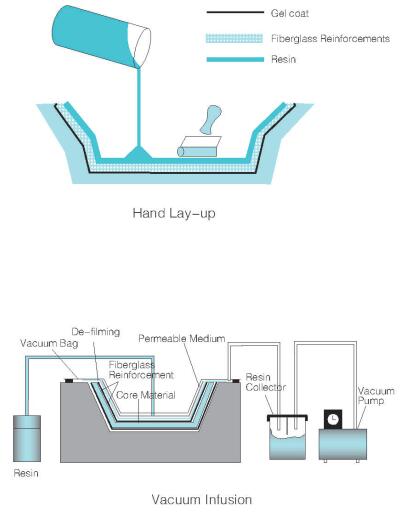

Hand Lay-up

Resin mix and liberglass reinforcements are laid into mold layer by layer,completely impregnated with air bubble

removed,laminated to designed thickness and cured.

Prepreg (Pre-forming)

Anintermediate molding process where liberglass reinforcements (roving or labrics) and  resin are impregnated evenly and partially cured as pre-formed materials,which can be directly processed for final products without adding more resin.

Vacuum Infusion (Vacuum Bagging)

Air is extracted completely form inside the vacuum bag with fiberglass reinforcements,and resin is forced by pressure into the reinforcements,uniformly impregnated and cured to form the laminates after vacuum bag removal.
